| ब्रांड नाम: | ADVS |
| मॉडल नंबर: | एचपीएल145 |
| MOQ: | 1 सेट |
| कीमत: | USD 34000-200000 |
| भुगतान की शर्तें: | टी/टी |

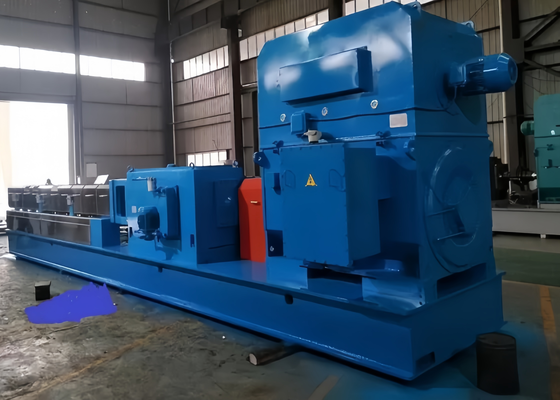

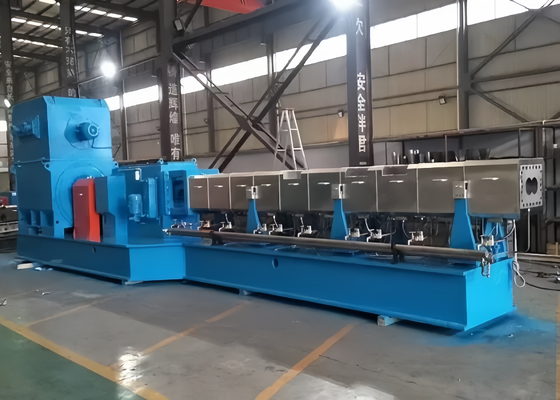

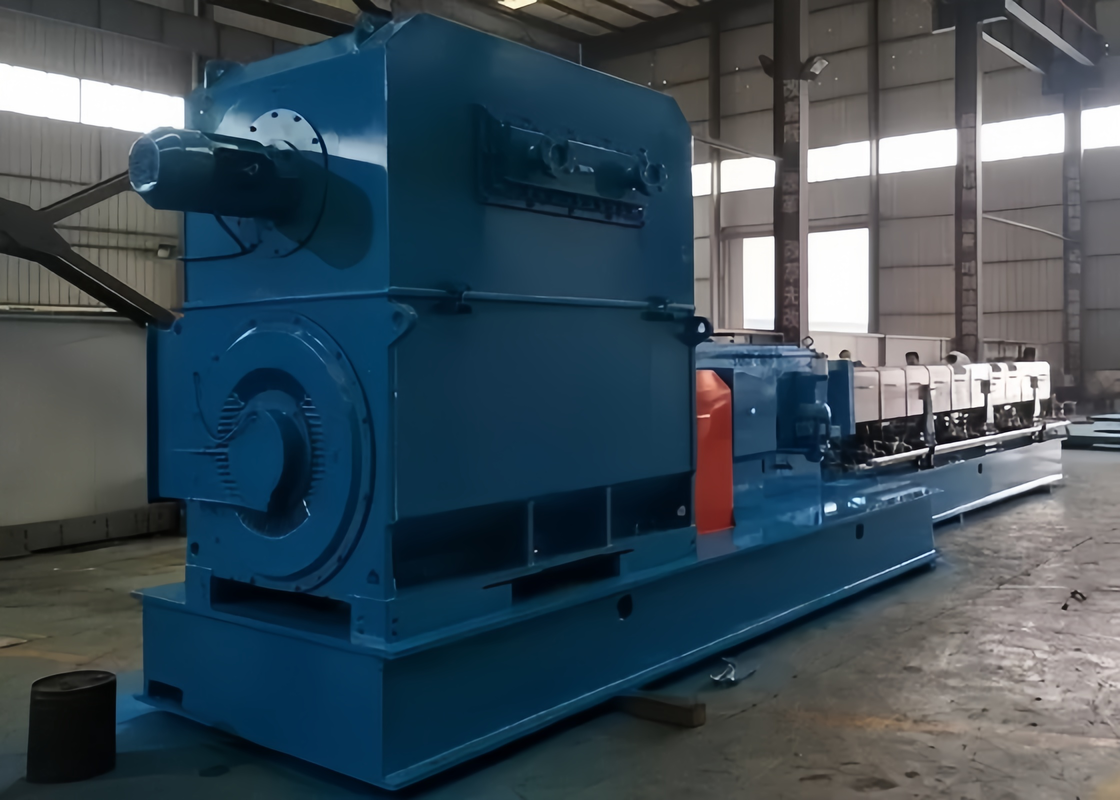

The HPL145 co-rotating parallel twin-screw granulating extruder is a large-scale industrial polymer processing equipment designed for high-volume compounding and modification production. With a rated output of 7200kg/h and 1500kW main motor power, this model adopts full-intermeshing deep-screw channel structure and multiple feeding system, delivering excellent mixing efficiency and stable production performance. It is the ideal solution for large-scale PP granulation, fiber reinforcement, filler modification and masterbatch production.
| Item | Specification |
|---|---|
| Model Number | HPL145 |
| Product Type | Twin Screw Granulating Extruder |
| Screw Diameter | 145mm |
| L/D Ratio | 40:1 |
| Main Motor Power | 1500kW |
| Max Screw Speed | 400rpm |
| Torque Density (T/A3) | 12Nm/cm³ |
| Shaft Center Distance | 120mm |
| OD/ID Ratio | 1.56 |
| Rated Output | 7200kg/h |
| Screw Configuration | Full Intermeshing, Deep Screw Channel |
| Feeding Mode | Multiple Feeding System |
| Assembly Structure | Integral Type Extruder |
| Exhaust System | Multi-stage Exhaust |
| Control System | Fully Automatic Computerized Control |
| Brand | ADVS |
| Origin | Sichuan, China |
| Packaging | Export Standard Iron Box |
| Parameter | HPL133 | HPL136 | HPL145 | HPL177 | HPL200 |
|---|---|---|---|---|---|
| Screw Diameter (mm) | 133 | 136 | 145 | 177 | 200 |
| L/D Ratio | 40 | 40 | 40 | 40 | 40 |
| Main Motor Power (kW) | 1200 | 1200 | 1500 | 2500 | 3600 |
| Max Screw Speed (rpm) | 400 | 400 | 400 | 400 | 360 |
| Torque Density (Nm/cm³) | 12 | 12 | 12 | 12 | 12 |
| Shaft Center Distance (mm) | 110 | 112 | 120 | 169 | 169 |
| OD/ID Ratio | 1.56 | 1.56 | 1.56 | 1.56 | 1.56 |
| Rated Output Range (kg/h) | 5000 | 5000 | 7200 | 18000 | 18000 |
This series of extruders is widely applicable for various polymer processing scenarios:

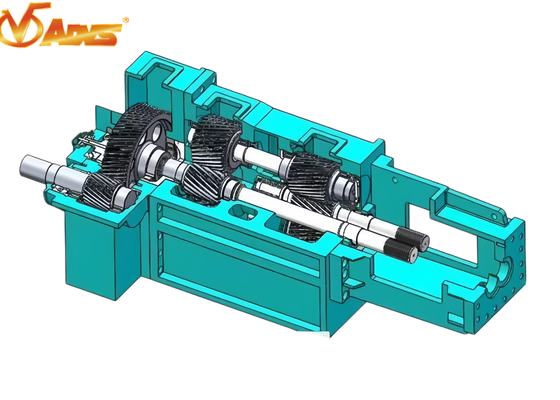

ADVS is a professional manufacturer focusing on the R&D, design and production of co-rotating and counter-rotating parallel twin-screw extruder complete lines. Our equipment features high torque, high efficiency, low energy consumption and excellent cost performance, with a gearbox design life of 72000 working hours. Our manufacturing technology and product quality keep pace with the world’s top extruder manufacturers.
![]()
