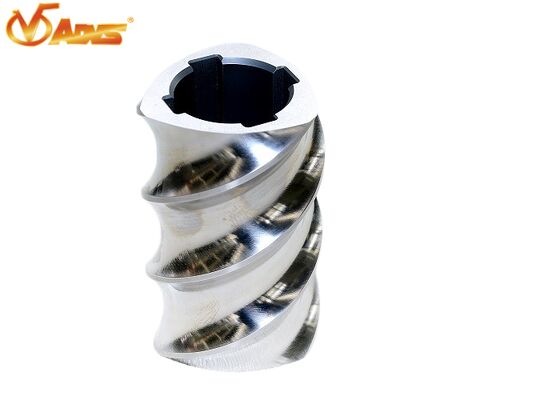

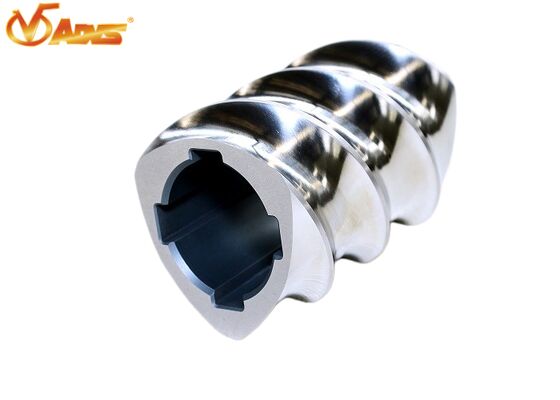

Custom 3-Flighted Screw Elements for Twin Screw Extruders with High Shear Rate and Precision Machining

With shallow screw grooves and thin material layers, 3-flighted screw elements deliver higher average shear rate and shear force to raw materials at the same screw rotational speed. Compared with 2-flighted types, the 3-flighted design performs better in heat transfer, greatly facilitating plasticization and melting of raw materials.

However, due to its strong shear force, 3-flighted screw elements are generally not recommended for shear-sensitive materials, such as glass fiber reinforced materials, PVC and other similar media.

• a. All raw materials are sourced from well-known domestic suppliers and professional European twin-screw material manufacturers. Each batch undergoes material analysis and metallurgical inspection to guarantee stable quality.
• b. Internal splines are inspected with spline plug gauges to ensure full interchangeability of spare parts.
• c. All screw elements are precision machined by CNC equipment to strictly comply with structural dimensions and tolerance standards.
• d. We adopt European powder high-speed steel processing technology and implement standardized heat treatment procedures, making the product’s wear resistance and corrosion resistance comparable to international premium brands.
• e. Our professional technical team provides fast and accurate reverse mapping, customized design, and professional technical support for screw element combination layout.
• f. We have complete technical documents and dedicated tooling fixtures for mainstream brand extruders to ensure short lead time. Standard components are kept in sufficient stock; customized non-standard products can be delivered within 45 days.
• g. A modern standardized management system ensures 100% product qualification rate and full lifecycle traceability.

Screw configuration refers to an integrated structure assembled by matching different screw elements to achieve targeted processing performance, such as dispersion and shearing effects. It meets the requirements of material compounding and ensures stable production operation.

According to technological functions, the extruder barrel is divided into seven functional sections: feeding zone, conveying zone, melting zone, natural venting zone, mixing zone, vacuum venting zone and metering zone.

Different screw elements possess unique characteristics for various extrusion processes. We select and customize suitable screw elements according to actual working conditions, so as to optimize the overall comprehensive performance of the extrusion system.
